Product Introduction Product Specification

Model No.	Specification	Size	Qty. (pcs/ctn)
EMS01	Straight Union	S16X16	160
EMS02	Straight Union	S20X20	120
EMS03	Straight Union	S25X25	80
EMS04	Straight Union	S32X32	48
EMS11	Reducing Straight Union	S16X20	160
EMS12	Reducing Straight Union	S16X25	120
EMS13	Reducing Straight Union	S20X25	120
EMS14	Reducing Straight Union	S25X32	72
EMS31	Male Straight Union	S16X1/2M	160
EMS32	Male Straight Union	S16X3/4M	160
EMS33	Male Straight Union	S20X1/2M	140
EMS34	Male Straight Union	S20X3/4M	140
EMS35	Male Straight Union	S25X1/2M	96
EMS36	Male Straight Union	S25X1M	80
EMS37	Male Straight Union	S25X3/4M	120
EMS38	Male Straight Union	S32X1M	60
EMS41	Female Straight Union	S16X1/2F	160
EMS42	Female Straight Union	S20X1/2F	140
EMS43	Female Straight Union	S20X3/4F	140
EMS44	Female Straight Union	S25X3/4F	120
EMS45	Female Straight Union	S25X1F	80
EMS46	Female Straight Union	S32X1F	60
EML01	Elbow	L16X16	96
EML02	Elbow	L20X20	80
EML03	Elbow	L25X25	48
EML04	Elbow	L32X32	32
EML11	Female Elbow	L16X1/2F	120
EML12	Female Elbow	L20X1/2F	96
EML13	Female Elbow	L20X3/4F	80
EML14	Female Elbow	L25X3/4F	60
EML15	Female Elbow	L32X1F	40
EML21	Male Elbow	L16X1/2M	120
EML22	Male Elbow	L20X1/2M	96
EML23	Male Elbow	L20X3/4M	100
EML24	Male Elbow	L25X3/4M	72
EML25	Male Elbow	L32X1M	40
EML41	Female Elbow with plate	L16X1/2F(A)	96
EML42	Female Elbow with plate	L20X1/2F(A)	72
EML43	Female Elbow with plate	L25X3/4F(A）	60

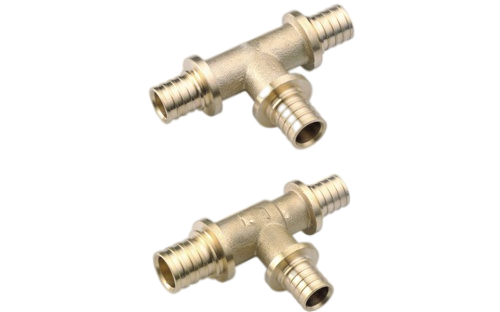

EMT01	Tee	T16X16X16	96
EMT02	Tee	T20X20X20	56
EMT03	Tee	T25X25X25	32
EMT04	Tee	T32X32X32	16
EMT11	Female Tee	T16X1/2FX16	96
EMT12	Female Tee	T20X1/2FX20	56
EMT13	Female Tee	T25X1/2FX25	40
EMT14	Female Tee	T25X3/4FX25	32
EMT15	Female Tee	T32X1FX32	16
EMT21	Unequal Tee	T16X20X16	80
EMT22	Unequal Tee	T20X16X16	80
EMT23	Unequal Tee	T20X16X20	72
EMT24	Unequal Tee	T20X20X16	72
EMT25	Unequal Tee	T20X25X20	40
EMT26	Unequal Tee	T25X16X16	40
EMT27	Unequal Tee	T25X16X25	40
EMT28	Unequal Tee	T25X16X20	40
EMT29	Unequal Tee	T25X20X16	40
EMT30	Unequal Tee	T25X25X16	40
EMT31	Unequal Tee	T25X25X20	40
EMT32	Unequal Tee	T25X20X20	40
EMT33	Unequal Tee	T25X20X25	40
EMT34	Unequal Tee	T32X20X20	32
EMT35	Unequal Tee	T32X25X25	32

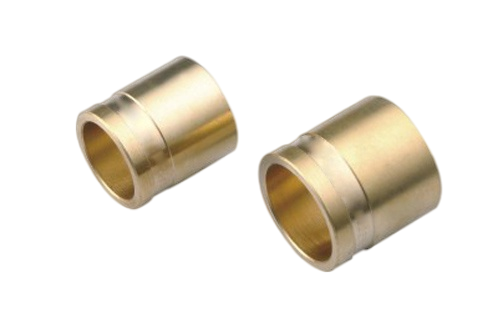

EMR01	Sleeve	φ16	320
EMR02	Sleeve	φ20	240
EMR03	Sleeve	φ25	160
EMR04	Sleeve	φ32	80

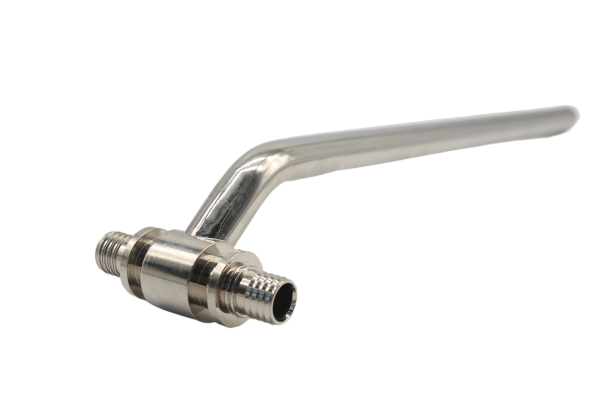

EFT-C 16-15-16	T-tubes for radiator connection	16Xφ15X16	N/A
EFT-C 16-15-20	T-tubes for radiator connection	16Xφ15X20	N/A
EFT-C 20-15-16	T-tubes for radiator connection	20Xφ15X16	N/A
EFT-C 20-15-20	T-tubes for radiator connection	20Xφ15X20	N/A
EFT-C 20-15-25	T-tubes for radiator connection	20Xφ15X25	N/A
EFT-C 25-15-20	T-tubes for radiator connection	25Xφ15X20	N/A
EFT-C 25-15-25	T-tubes for radiator connection	25Xφ15X25	N/A
EFL-C 16-15	L Tube for radiator connection	16-φ15	N/A
EFL-C 20-15	L Tube for radiator connection	20-φ15	N/A
EFL-C 20-18	L Tube for radiator connection	20-φ18	N/A

Product characteristics

EFIELD sliding fittings are suitable for the supply drinking water, sanitary hot water, cooling, heating systems with radiators and radiant panels and compressed air installations with advantages as below
Suitable both for PEX and multilayer (Pex/Al/Pex) pipes
One system both for drinking water and heating installations
Corrosion resistance
Greater water flow and consequently lower pressure drops
Heat treatment of the bush which guarantees greater plasticity, greater deformation capacity and less breakage
Low coefficient of thermal expansion value
Quick and easy isntallation also with manual tools
Safe installation: watertight connection, without stagnation points and without requiring O-rings or additional gaskets
