Product Introduction Product Specification
PRESS FITTING
MODEL NO. DESCRIPTION SIZE QTY(PCS/CTN)

ELS01 STRAIGHT COUPLING S16X16 320
ELS02   S18X18 224
ELS03   S20X20 224
ELS04   S25X25 96
ELS05   S32X32 80
    S40X40 55
    S50X50 40
    S63X63 15

ELS11 REDUCING COUPLING S18X16 320
ELS12   S20X16 240
ELS13   S25X16 120
ELS14   S25X20 96
ELS15   S32X16 80
ELS16   S32X20 80
ELS17   S32X25 80
    S40X25 60
    S40X32 60
    S50X25 50
    S50X32 40
    S50X40 40
    S63X40 20
    S63X50 15

ELS21 MALE STRAIGHT COUPLING S16X1/2M 320
ELS22   S16X3/4M 200
ELS23   S18X1/2M 336
ELS24   S18X3/4M 200
ELS25   S20X1/2M 280
ELS26   S20X3/4M 200
ELS27   S25X1/2M 120
ELS28   S25X3/4M 120
ELS29   S25X1M 120
ELS30   S32X1M 96
ELS31   S32X11/4M 90
    S40X1M 32
    S40X1 1/4M 24
    S40X1 1/2M 24
    S50X1M 24
    S50X1 1/2M  24
    S50X2M 24
    S63X1 1/2M 24
    S63X2M  20

ELS41 FEMALE STRAIGHT COUPLING S16X1/2F 280
ELS42   S16X3/4F 240
ELS43   S18X1/2F 288
ELS44   S18X3/4F 256
ELS45   S20X1/2F 240
ELS46   S20X3/4F 160
ELS47   S25X3/4F 120
EIS48   S25X1F 96
ELS49   S32X1F 96
ELS50   S32X11/4F 64
    S40X1F 72
    S40X1 1/4F 72
    S50X1F 36
    S50X1 1/2F 36
    S50X2F 20
    S63X1F 20
    S63X2F 20
    S63X2 1/2F 20


ELS51 DEMOUNTABLE FEMALE STRAIGHT COUPLING SH16X1/2F 320
    SH16X3/4F 288
    SH18X1/2F 288
ELS54   SH20X1/2F 240
ELS52   SH20X3/4F 160
ELS53   SH25X3/4F 120
    SH25X1F 96
    SH32X1F 96

ELS61 COPPER ADAPTER S16MM-CU15MM 400
    S16MM-CU18MM 360
    S20MM-CU15MM 240
    S20MM-CU18MM 240
ELS62   S20MM-CU22MM 160
    S32MM-CU28MM 128

ELL01 ELBOW L16X16 192
ELL02   L18X18 192
ELL03   L20X20 144
ELL04   L25X25 72
ELL05   L32X32 48
    L40X40 16
    L50X50 16
    L63X63 10


ELL11 FEMALE ELBOW L16X1/2F 160
ELL12   L16X3/4F 144
ELL13   L18X1/2F 144
ELL14   L18X3/4F 144
ELL15   L20X1/2F 144
ELL16   L20X3/4F 120
ELL17   L25X3/4F 96
ELL18   L25X1F 64
ELL19   L32X1F 48
    L40X1F 32
    L40X1 1/4F 32
    L40X1 1/2F 32
    L50X1F 28
    L50X1 1/2F 20
    L63X2F 12

ELL21 MALE ELBOW L16X1/2M 192
ELL22   L20X1/2M 192
ELL23   L20X3/4M 160
ELL24   L25X3/4M 80
ELL25   L32X1M 48
  SWIVEL ELBOW
ELL31   LH16X1/2F 192
ELL32   LH20X3/4F 160

ELL51 WALL-PLATED FEMALE ELBOW L16X1/2F(A) 80
ELL52   L20X1/2F(A) 96
ELL53   L16X3/4F(A) 96
ELL54   L20X3/4F(A) 80
    L25X3/4F(A) 80

ELT01 TEE T16 120
ELT02   T18 96
ELT03   T20 96
ELT04   T25 48
ELT05   T32 24
    T40 24
    T50 12
    T63 6

ELT11 REDUCING TEE T20X16X16 96
ELT12   T20X16X20 96
ELT13   T18X16X18 96
ELT14   T18X20X18 96
ELT15   T18X25X18 96
ELT16   T25X16X25 48
ELT17   T25X20X25 48
ELT18   T32X16X32 40
ELT19   T32X25X32 40
ELT20   T25X16X16 48
ELT21   T25X16X20 48
ELT22   T25X20X20 48
ELT23   T25X25X20 48
ELT24   T32X16X25 40
ELT25   T32X32X25 40
ELT26   T32X25X25 40
ELT27   T32X20X32 40
ELT28   T32X25X20 40
    T32X25X32 40
    T40X20X40 32
    T40X25X40 32
    T40X32X40 32
    T50X32X50 20
    T50X40X50 18
    T63X40X63 10

ELT31 FEMALE TEE T16X1/2FX16 96
ELT32   T16X3/4FX16 96
ELT33   T18X1/2FX18 96
ELT34   T18X3/4FX18 96
ELT35   T20X1/2FX20 96
ELT36   T20X3/4FX20 80
ELT37   T25X1/2FX25 48
ELT38   T25X3/4FX25 48
ELT39   T25X1FX25 48
ELT40   T32X3/4FX32 32
ELT41   T32X1FX32 24
    T40X3/4FX40 16
    T40X1FX40 16
    T40X1 1/4FX40 20
    T50X1 1/2FX50 16
    T63X2FX63 6

  END CAP D16 480
    D20 320
    D25 240
    D32

  WALL-PLATED MALE ELBOW DN16 X 1/2" MI- 65mm  80
    DN16 X 1/2" MI -90mm  70
    DN16 X 1/2" MI- 95mm  64
    DN20 X 1/2" MI- 65mm  80
    DN20 X 1/2" MI- 90mm  70
    DN20 X 1/2" MI- 95mm  80

    DN20 X 3/4" MI- 65mm  80
    DN20 X 3/4" MI- 90mm  70
    DN20 X 3/4" MI- 95mm  64
    DN20 X 3/4"
MI- 100mm
48
    DN16x1/2" MI-150mm 50
    DN16x1/2" MI-200mm 50
    DN20x1/2" MI-150mm 50
    DN20x1/2" MI-200mm 50
    DN20x3/4" MI-150mm 40
    DN20x3/4" MI-200mm 40

Product characteristics

EFIELD brass press fittings are made of  CW617N, CW602N and domestic high quality brass raw material and others customer's request.

Conformed to ISO 21003, AS/NZS 2537, ISO 15875, EFIELD pex press fittings have been passed CE, AENOR, WATERMARK certification.

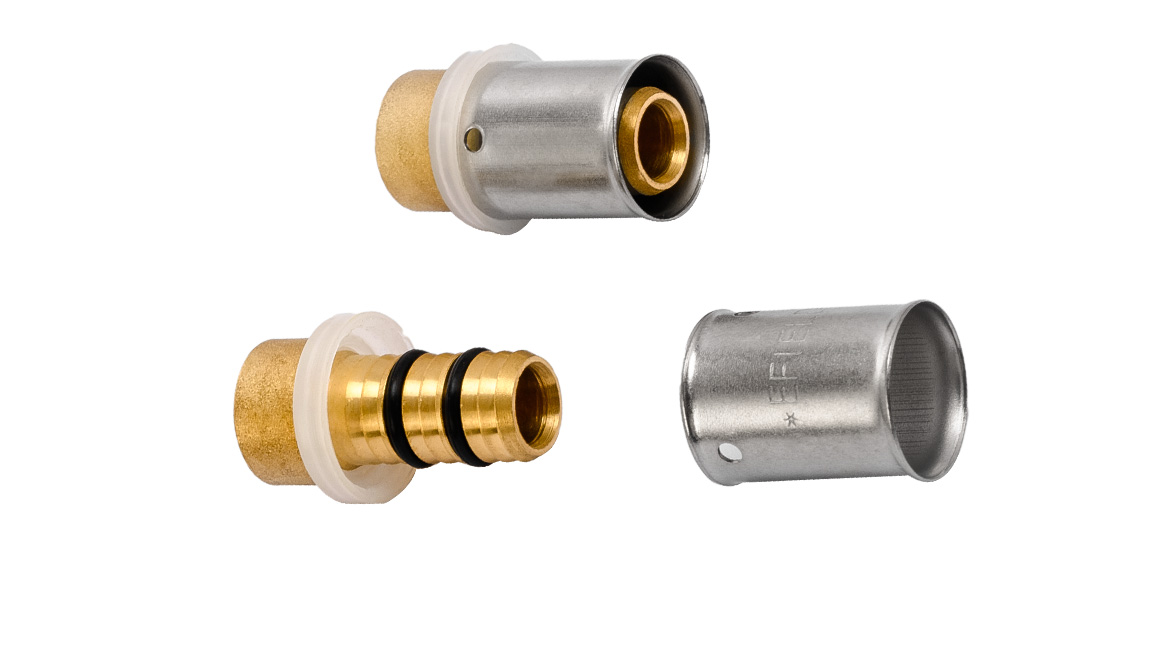

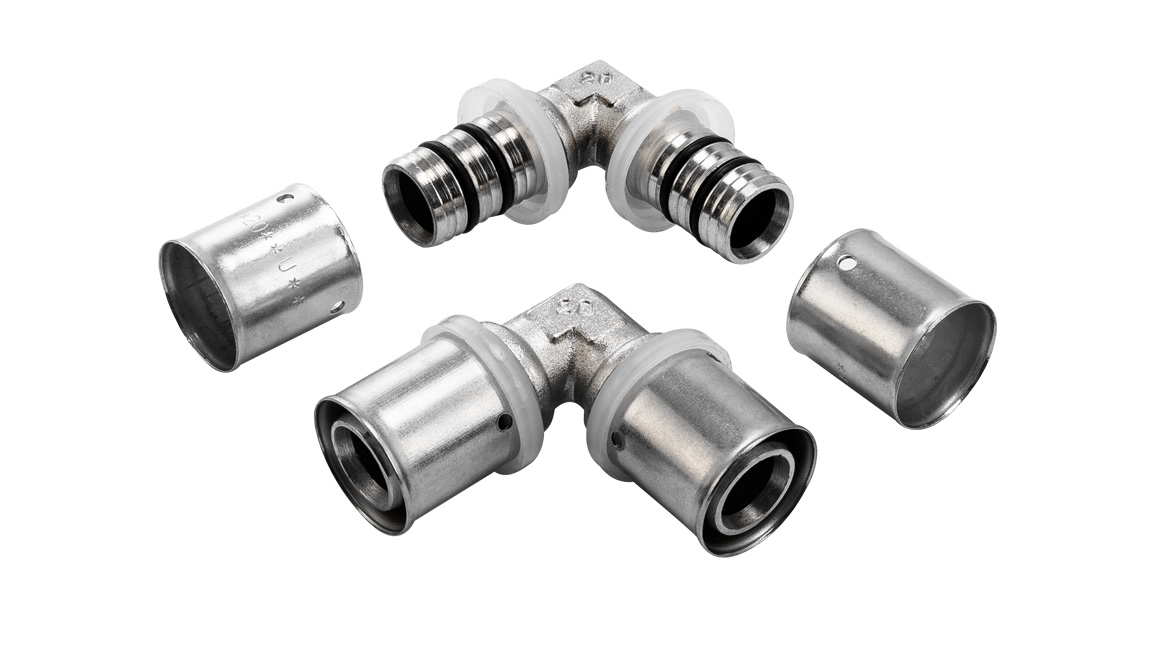

The sleeve is made of stainless steel 304, designed in accordance with mechanical pressing formability and marked with diameter of the pipe. Observation three holes ensusre proper installation of the pipe.

The O-rings are made of EPDM and NBR, EPDM is applicable to water and NBR for natural gas.



Product Execution Standards
